Description

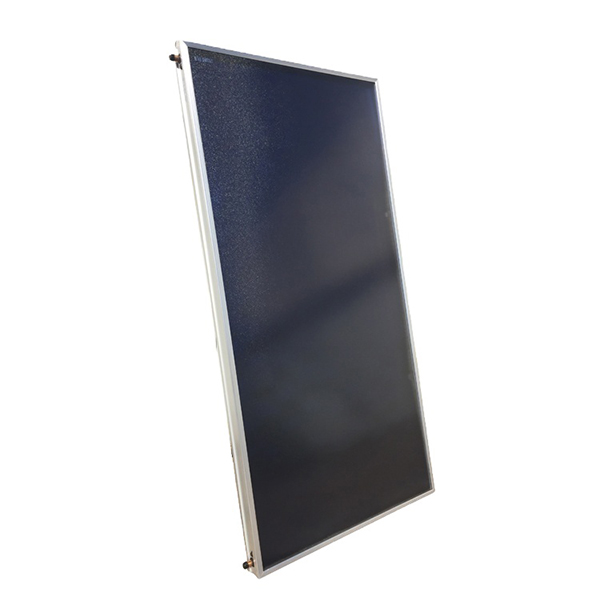

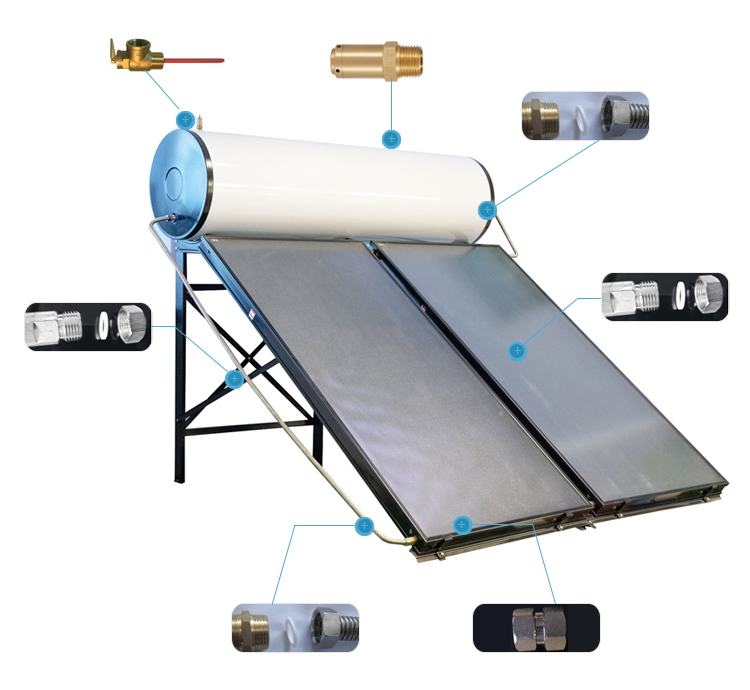

Pressure solar water heater incorporates a number of high efficiency flat plate collectors, hot water tank with heat exchanger, supporting bracket and accessories. The flat panel absorbs solar energy for direct water heating and store in storage tank.
The characteristic
1. Thermosiphon direct system, easy piping work, higher efficiency.
2. Intelligent control, automatic water filling.
3. Reliable electric back-up with protection against dry heating and thermal cut-out.

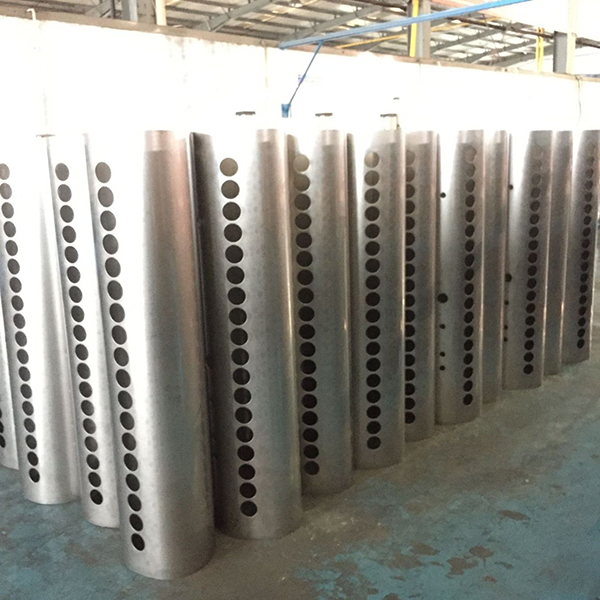

4. Pressurized water tank with SUS304-2B inner tank, good at anti-corrosion.
5 .Operation under pressure to ensure comfortable shower water.
6. Polyurethane layer foaming insulation for keeping temperature of water.
7. Totally copper flow channels achieve low defect rate and easy maintenance, long service life.
Parameter

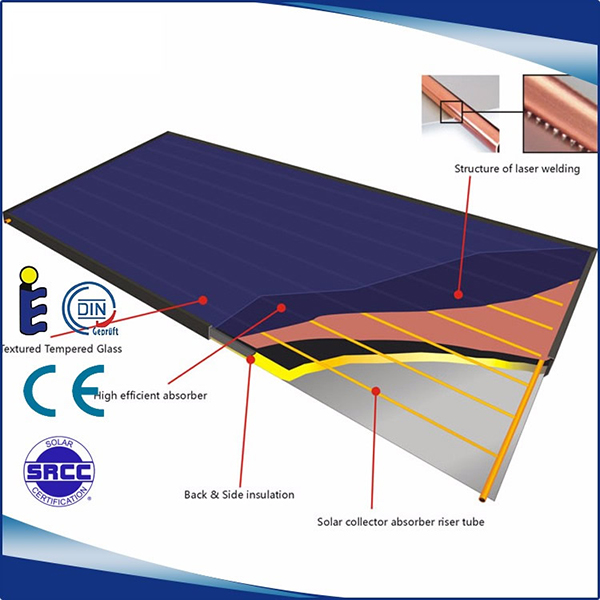

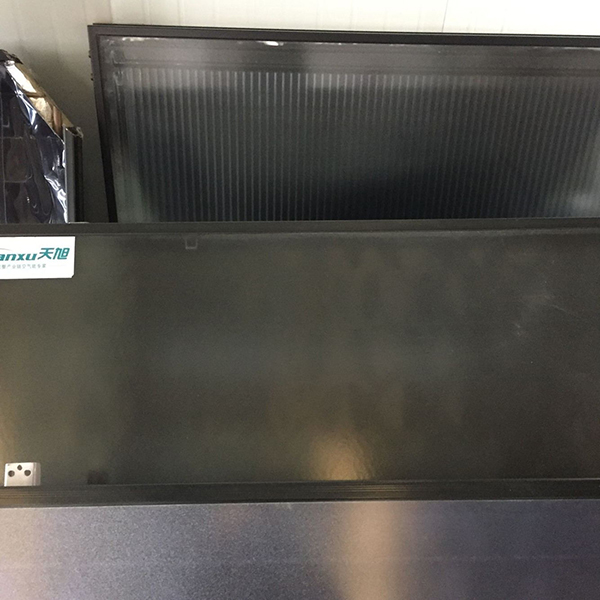

Name | Specification | TX-AFP-150L | TX-AFP -200L | TX-AFP -300L |
Flat plate collector | Quantity ( pc ) | 1 | 1 | 2 |
Collector dimension(mm) | 2000x1000x80mm | 2000x1250x80mm | 2000x1000x80mm | |
Header tube(mm) | Φ22 x0.6mm | |||
Riser Tube(mm) | Φ10*0.5mm | |||
Integrated circulation Pipe | Corrugated Pipe | |||
Welding | Laser welding | |||
Absorber coating | Black Coating | |||
Insulation material | Fiber glass + polyester fiber | |||
Material | 3.2mm Low iron tempered textured glass | |||
The rated pressure | 0.6MPa | |||
Frame color | Silver/Black | |||
Water Tank | Insulation | Polyurethane in 50mm | ||
Inner tank | Food grade stainless steel, SUS304-2B, 1.2mm thickness | |||
The rated pressure | <0.6MPa | |||
Electrical Heater | 1.5KW | |||
Outside material | Galvanized steel plate, 0.4mm thickness | |||
Support | Material | Galvanized Plate with Powder Coating | ||
Spare Parts | Material | safety valve, check valve and magnesium bar, electric element | ||
20"container Quantity | 36 | 28 | 20 | |
Principle
1. There are two layers water tank, heat transfer fluid circulated between water tank and flat plate collectors naturally. Then it will be heated and transfer energy to water in inner tank.
2. Hot water from this kind of solar water heater is pressurized. It is easily installed on the house roof.
