What is Swimming pool heat pump?

A heat pump is a device that transfers heat energy from a low-level heat source to a high-level heat source. Heat pumps usually first obtain low-grade heat energy from natural air, water or soil, then use electricity to do work, and then provide people with usable high-grade heat energy.

The eco swimming pool heat pump has certain advantages in energy saving, low carbon, and reducing operating costs. It can completely use the heat from the evaporated water vapor on the surface of the swimming pool to supplement the heat energy required by the system. The swimming pool heat pump uses the principle of reverse Carnot cycle. This technology is environmentally friendly. It can be said that the heating effect is very obvious. Whether it is air heat storage or system integration, it has strong work efficiency. From the perspective of environmental protection, high efficiency swimming pool heat pump not only plays a role in making full use of energy, but also avoids the pollution problem of greenhouse gas emissions, and also saves the application of electric energy. To warm the water in the swimming pool, a larger hot water capacity is required.

As a professional heat pump manufacturer,TIANXU has a wide range of pool machine heat pumps, including domestic and commercial heat pumps, DC and frequency conversion pool machines. We can also customize the pool machine heat pump according to your needs.

How do swimming pool heat pumps work?

The swimming pool heat pump is integrated in the constant temperature and humidity equipment, and the fan of the equipment draws warm and humid air from the swimming pool room. The air flows through the evaporator coil, and the heat energy is transferred to the refrigerant. After the liquid refrigerant flows through the evaporator, it becomes a gaseous state, and then enters the compressor of the equipment, where it is compressed into a high-humidity gaseous refrigerant. When entering the compressor, the refrigerant absorbs the energy used to operate the compression, and this high-humidity gaseous refrigerant flows through the air reheating coil and the pool water condenser.

When the swimming pool heat pump heats the air, the air reheating coil is used. The high-humidity gaseous refrigerant exchanges energy with the cooler air from the evaporator, and transfers the heat energy to the air, so that the air temperature rises to achieve the heating purpose, and then The heated air is sent to the swimming pool.
When the swimming pool heat pump heats the swimming pool water, the high-humidity gaseous refrigerant flows into the pool water condenser and transfers the heat to the water entering the swimming pool. After the heated water returns to the swimming pool, the swimming pool heat pump completes the pool water heating process.

How Should I Choose Swimming Pool Heat Pumps

Preparation before design and selection

When heating the pool water, there are two situations: one is the initial heating of the pool water, and the other is the constant temperature heating of the pool water. It must be clear that our selection of swimming pool machines for swimming pool water heating is based on the maximum load of both the initial heating load and the constant temperature heating load of the swimming pool.

• Specific information about the location of the project

• The basic situation of the swimming pool : Pool Size (Length*Width*Length), Pool target temp, Cold water feeding temp, Ambient temp, Humidity, Wind speed

• The basic situation of the swimming pool complex (such as area, floor height, glass surface, etc.)

• The location of the computer room (and whether the power supply capacity is sufficient, etc.)

•  The placement of the unit

• Pool water heating, heat loss, and water supplement calculation

The benefits of heat pumps?

1. Economic

Air energy heat pump unit is the energy-saving technology that the world pays attention to.

After the water heater, it is more energy-saving and environmentally friendly, safe and cost-effective water heater equipment, the air can use natural energy to produce hot water, and the annual average thermal efficiency is as high as 460%.

The effect is very friendly. The heat pump adopts refrigerant heating, high efficiency and energy saving, water and electricity isolation, no safety hidden, no pollution.

2. Energy-efficient

The air source heat pump adopts special high-efficiency and environmentally friendly refrigerant, and the temperature of the water produced can reach 65't, and the temperature of hot water produced by the industrial heat pump can be up to 85't, and the average thermal efficiency at room temperature is 460% (up to 600%). Compared with ordinary electric water heaters, the total annual operating cost can be saved by more than 80%, compared with gas and oil-fired boilers by 75%, compared with urban pipeline gas by 66%, and compared with coal-fired boilers by 57% Above, the energy-saving effect is also significant in Moyang water heaters; the air energy heat pump converts the consumed electric energy into more than 4 times the heat energy, and one degree of electricity is used as 4 degrees of electricity to achieve hot water production. Energy saving means saving money! The input-output ratio is higher than that of the apartment, the return is very fast, and it has good social and economic benefits.

3. Environmental protection

Air source heat pump use clean energy, no waste gas pollution, no combustion emissions, no toxic gas emissions, and keep the environment clean.

4. Wide range of applications

There are different specifications and models for crystal production, which can meet the needs of hot water use units such as factories, hotels, schools, hospitals, beauty kilns, bath centers, villas, and families.

5. Easy to install

It can be installed on roofs, balconies, courtyards, basements, etc., without the need for special personnel to look at the intelligence, and no need to set up a dedicated computer room.

The air energy heat pump water heater is not affected by any weather such as night, cloudy, and negotiation, and can provide hot water all year round, filling the shortage of solar water heaters that cannot guarantee hot water supply at any time due to the influence of weather and environment.

6. Safe and reliable

The air energy heat pump water heater exchanges heat through the medium, the water quality is clean, there is no need to use electricity to contact the water, the water and electricity are used to isolate bacteria, and the hidden danger of electric shock is completely eliminated. .

7. Durable

Tianxu air energy heat pump uses the American Copeland compressor, electronic expansion valve, four-way valve and other main parts and uses high-quality crystals produced by world-renowned factories, so as to ensure the quality of the 7 heat pump units, and its service life is as long as 15 years, which is much higher than the service life of other types of water heaters.

8. Intelligent Control

Tianxu air energy heat pump water heater super intelligent microcomputer automatic control system, according to the needs of users, heating, temperature sensing, temperature control, heat preservation, water supply, water replenishment, safety protection and other automatic operation, without manual monitoring, 24 hours a day Ready-to-use or timed water supply. At the same time, the intelligent defrosting system designed by this crystal ensures that it can still operate normally in the case of low temperature conditions in each season.

9. Modular

When the water consumption is large, multiple heat pump units are installed and used in parallel. Small water sites can be used alone. When the water consumption of users increases, they can be added at will. The advantage of multi-machine parallel connection is that it does not affect the operation of the entire system during maintenance.

10. Multiple water supply

The high-volume, high-density and thick-type fluorine-free integral foaming insulation water tank is adopted, which has excellent thermal insulation performance and sufficient water volume, which can ensure the constant temperature of the outlet water, and realize the simultaneous multi-point water supply.

CASE STUDY

VIETNAM OUTDOOR SWIMMING POOL CONSTANT TEMPERATURE/HEATING PROJECT

Swimming pool size: 15.1*9.1*4.0m

Lowest Ambient temperature in a year：22℃

Target Water Temperature: 27℃

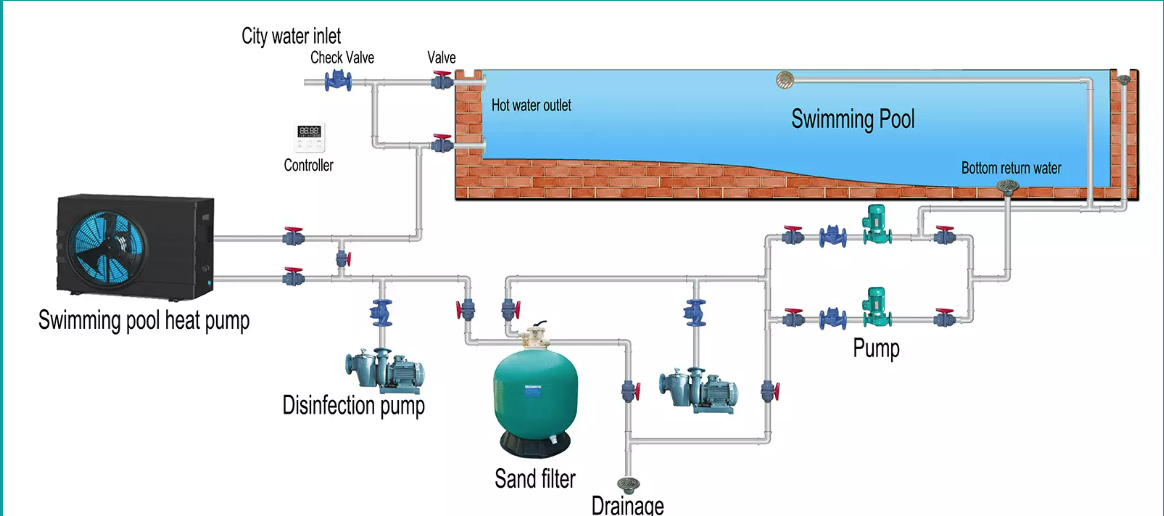

System Configuration
